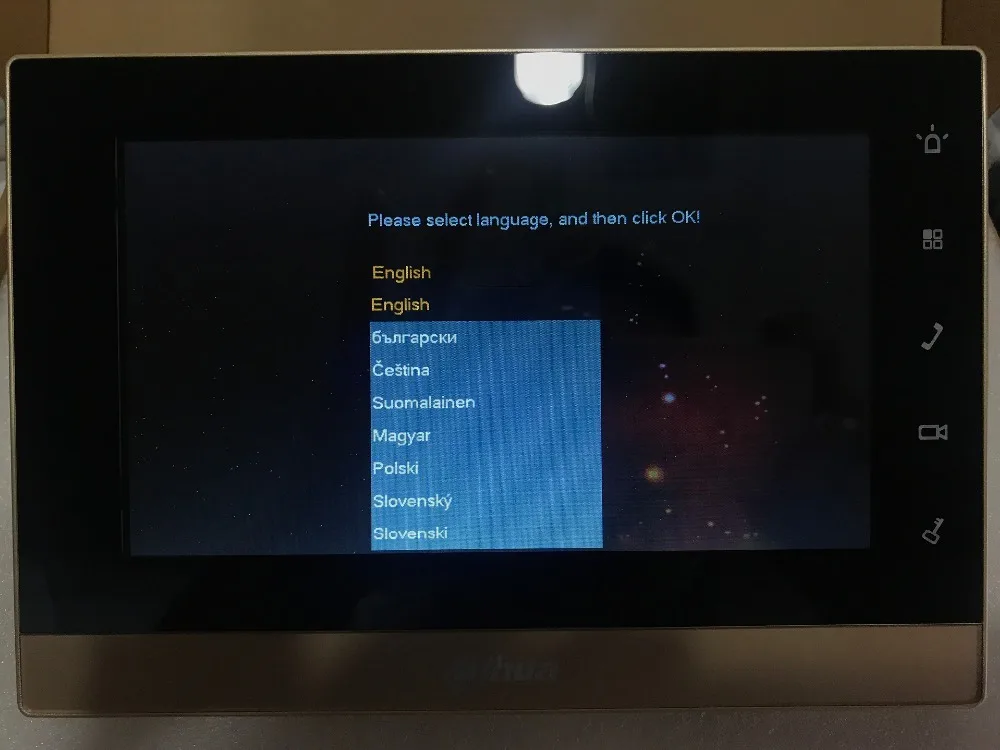

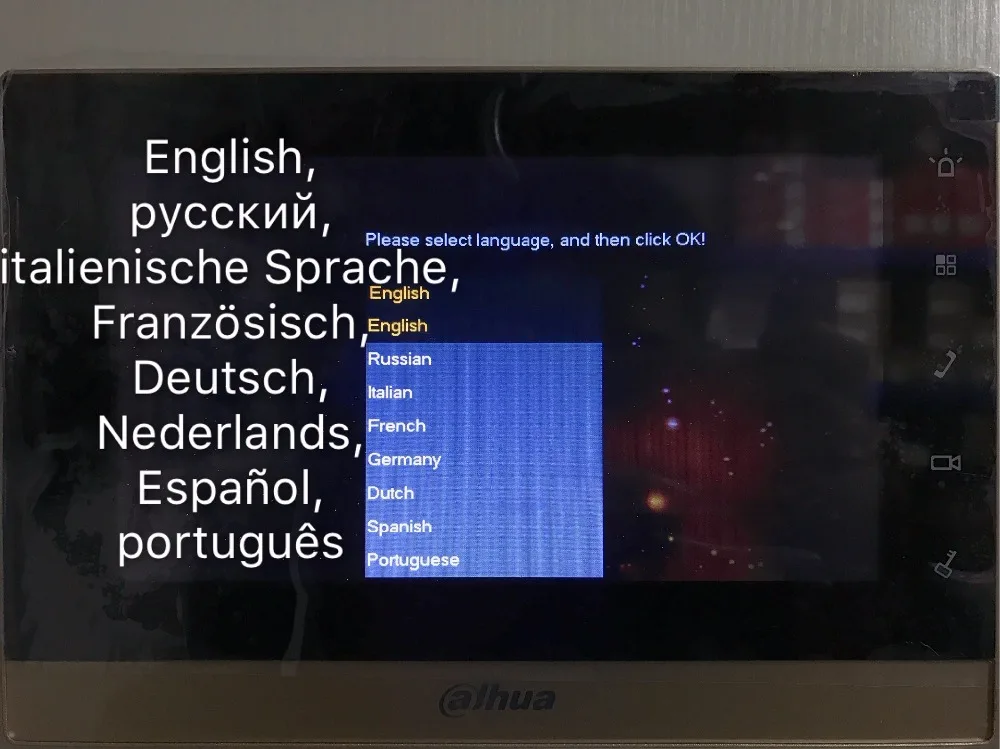

Dahua Multi-language video intercom touch screen Color Indoor Monitor VTH1550CH VTH1510CH VTH1660CH

98 % of buyers enjoyed this product!
Availability: out of stock
Color: VTH1550CH Capacitive VTH1510CH Resistive VTH1660CH Capacitive 1550CHW Capacitive
Price:  R2 455
Sale Price:  R1 988
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days



VTH1550CH:      Gold        7" TFT Capacitive touch screen
VTH1550CHW:    white      7" TFT Capacitive touch screen
VTH1510CH:      Gold        7" TFT Resistive   touch screen
VTH1660CH:       Gold   10.2" TFT Capacitive touch screen
IMG_3871
IMG_3917IMG_3919IMG_2574


Technical Specification

Model

VTH1510CH/VTH1550CH/VTH1550CHW/VTH1660CH

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Audio

Audio Compression

G.711

Audio Input

All-direction Microphone

Audio Output

Built-in Loudspeaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Display

LCD Screen

VTH1510CH/VTH1550CH/VTH1550CHW: 7“ 800×480;

VTH1660CH    10.2-inch TFT LCD

Operation Mode

Input

Touch buttons

Interface

Alarm In

6

Alarm Out

1

RS485

1

Network

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

General

Memory Slot



VTH1550CHW: Have a TF slot;

VTH1510CH:Have a TF slot;

VTH1550CH: Have a TF slot;

VTH1660 :4G TF crad

Installation

Surface

Power

DC 12V/ supply directly by VTNS1060A

Power Consumption

Standby ≤1.5W, Work ≤7W

Working Temperature

﹣10°C~+55°C

Relative Humidity

10%~90%RH

Dimensions

200.5mm×136.5mm×22.0mm

Weight

0.8Kg



How To Add A VTH1550CH To A VTO2000A

1.Into the indoor monitor project settings,password:888888;IMG_2994   2.Into Products info ,Room No :9901;5   3.Into Net set to view the IP address:192.168.1.109;IMG_2997     4.Must open“Enable Status”,This is the key, you don’t need SIP.IMG_2998    5.Now into the VTO(192.168.1.110), user name :admin, password : admin;Add indoor manager info;66.If you want to use P2P, you should fill in the correct gateway and DNS.787.When there is no X icon, you are success.4

Add indoor manager info;



Add indoor manager info;





How To Add A VTH1550CH To A VTO1210C-X

Description

This Step by Step guide will provide instruction to setup A VTH1550CH To A VTO1210C-X via a LAN connection.

Prerequisites

  • Power and network to VTH1550CH and VTO1210C-X
  • Windows PC on netwo

Step by Step Instructions

VTO1210C-X Setup:

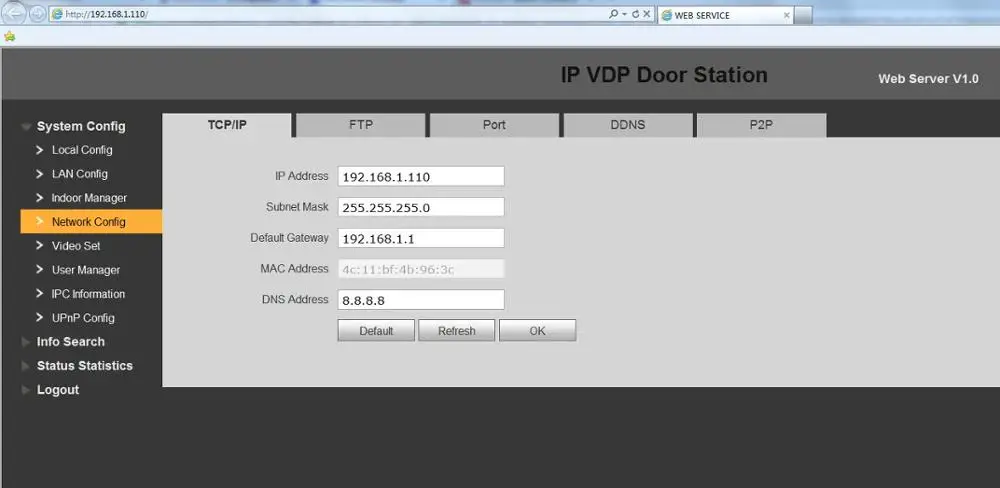

1. Log into the VTO via it’s IP address using Internet Explorer (username:admin password:admin). To configure the VTO1210C’s IP address please use the config tool to find the IP an change it. Alternatively press * and enter the admin code in (888888, but it can be modified) followed by # to access the menu. Select IP Setting to set the IP address, subnet mask, and gateway settings.



2. Under System Config-> Local Config set the video format to WVGA, Make sure your device type is set to Unit Door Station, then select OK.



3. Select LAN Config and make sure "Group Call" is checked, then select OK.



4. Select Logout-> Reboot Device and then select Reboot Device and then give the device 2-5 minutes to reboot and then log in again.



VTH Setup



5. Select System Config-> Indoor Manager and then select Add, and add your VTH number(s), as well as any additional (but not required) information. This should conclude the Setup of the VTO1210C-X



6. Tap the VTH on it’s first boot (or factory reset) and then enter the room number you had entered into the VTO1210C-X via Internet Explorer, then select OK, then select OK again, and then exit the window.



7. Select settings -> Project Settings and enter the default password of the VTH (888888, or 002236, or 123456, or user specified) and select OK.



8. Select Net Set, and enter in a valid IP address or use DHCP for your router to address one and select OK.



9. Select Network and enter in the VTO’s IP address and select OK. There should now be a message that says "Please wait until setup completes…" then "Set Successfully!". Notice in the upper left corner of the screen that the VTO disconnected symbol is removed, this is an indicator that your device is connected.



10. To add more VTH devices please repeat steps 5-9 and use a different room number. You should now be able to use both devices together as intended.
