GSM App Control Wireless Home Security Alarm System Wifi IP Camera SMS RFID Autodial SMS Detector Kit Wireless Flash Siren

100 % of buyers enjoyed this product!
Availability: out of stock
Price:
Sale Price:  R0
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

900

G19 Wireless App Controlled LCD GSM SMS RFID Autodial Touch Keypad Home Security Alarm System







21bfcca4-b378-4c9f-8a53-ae41dab1db98

7fc88faf-13ba-4e06-9425-7cc779d9d8e6

Overview

  This alarm system is a high-end GSM alarm with stable and reliable performance and applies 2.4-inch TFT color screen and touch keyboard with built-in powerful CPU master and excellent operation experience. Host connects PIR motion sensors, door contacts, smoke detectors, gas detectors and emergency button accessories etc. After receiving an alarm, host will display the alarm zone and alarm siren on site, while texting to and dialing the number preset to inform user. It’s widely used in houses, factories, schools, shops, convenience stores, financial rooms, villas, communities and other area needed to be protected to ensure the security of the person and property at all aspects.

O&A

Q: How is this alarm system work?

A: When you receive the package,you need to plug the sim card (package without sim card) into the alarm panel and connect the 110dB wired siren with the panel,and then set the phone number into the system to receive the alarm call or sms.And then install the door sensors and PIR motion sensors on the doors or other place you need to protect.And when someone enter your house and trigger the sensors,the alarm system will sound siren and dial your phone number or send sms.

Q:Can I order this alarm system if I have no sim card,where I can buy the sim card and I need to pay for the sim card?

A:1.This alarm system with a 110dB siren,so when someone enter your house and trigger the sensors,system will also sound the siren to scare away the thieves even if you do not plug the sim card.So you can order it.But system will not send sms or call you if it without sim card.

   2.Users can buy 2G sim card from T-mobile,AT&T or Vodafone,and other area users can order it from local comminication company.

   3.It like you use a mobile phone,user need to pay monthly for the sim card.And if the system send sms or call you,you need to pay for this.

Q:How many wireless sensors can work with this system and can I connect wired sensors with it?

A:This system can work with 99PCS sensors like door sensors,pir motion sensors,smoke detectors,gas detectors,wireless smart socket,IR barriers,vibration sensors or other sensors in our store.And this system with 2 wired zones and it can work with about 4-6 wired sensors.

Q:Can I remote control the alarm system by using APP?

A:This alarm system support APP control,and support IOS and Android.



New Function

$_10



601e9941-e969-46a9-bae2-8564abfbf7d035f767ad-3626-4c8e-ada4-b921d7e42544

0e0be912-69fe-42f9-b2c5-a4807d698ad7



991d9d68-03ed-4fa7-8610-5d430c7d37bd4d873999-cfec-49ca-8350-9298caa6f693881d11f8-fbe3-4dde-8e45-993d660aa824



Main Function and Feature



  • TFT color display, humanized menu, operation with voice prompt, easy to use.
  • Read RFID card to disarm, can learn 20 cards.
  • There are 99 zones and 8 zone types optional in each zone; ON/OFF siren in each zone is available.
  • 2 wired zones, Open and Closed Alarm mode optional
  • Host can be used as a normal cellphone to call other phones directly
  • To Set host through phone or SMS remotely, and it ’s compatible with China Mobile Fly message function to save user ’s SMS costs.
  • APP control host set and administration, and supports IOS/Android.
  • 8 groups scheduling Arm/Disarm function, and date can be selected to avoid arm and disarm frequently manually to realize automatic control.
  • One-way alarm linkage wireless relay, and one-way wireless strobe siren
  • Control as much as 20 smart sockets through phone or SMS remotely to realize appliances remote control.
  • Host dial the phone number preset by user when alarms, and number never lost even power off
  • 10s automatic message recording with built-in artificial voice, so that user can know the alarm place and zone when receive the alarm call remotely.
  • Arm/Disarm, Monitor, Speaker, siren ON/OFF, relay ON/OFF remotely.
  • Wireless study 1527 series accessories, and as much as 99 detectors and remote controls.
  • Integrate high precision clock chip so that time never lost even power failure.
  • Display the latest 99 arm/disarm, alarm and card read records with unique black box function.
  • Low-voltage indication and anti-tamper
  • Built-in rechargeable high capacity LI battery and supply power automatically when power supply failure
  • Caller ID display, power-off reminder.
  • Host applies four frequency GSM/GPRS module.



Technical Parameters

Panel

a6eabd55-67d9-4454-9539-6c02b8957339 (1)

Input Voltage: DC5V
Standby Current: <50mA
Alarm Current: <450mA
Wireless Frequency:433MHz
GSM Standard:Support GSM850/900/1800/1900MHz
Back-up Battery:3.7 High Capacity LI Battery
Alarm Loudness:80dB
Accessories Parameters: this alarm can be compatible with PT2262 and EV1527 detectors. When using PT2262 coding, shock resistance is supposed to be 1.5M-4.7M, when using the EV1527 coding, vibration resistance is supposed to be 150K-470K.



Wireless Door Sensor
s-l1600 (3)



1, Transmission frequency: 433MHz

2, Operating Power: 23A 12V

3, Built-in Antenna

4, It will send the alarm signal to control host once the door or window is opened

5, Battery life: about 8 month

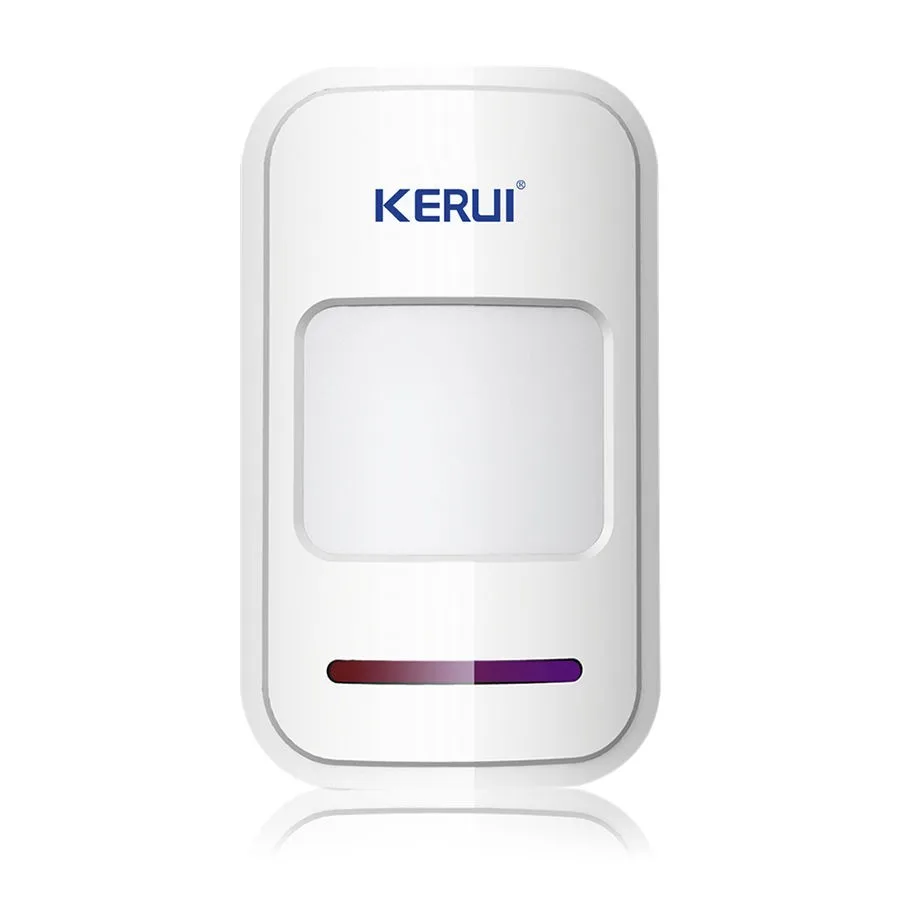

Wireless PIR Motion Sensor
s-l1600 (4)


Installation height is about 2.2 meters above ground and the optimized detection angle for most motion sensor is 90 degree. The sensor should face the detected area with this consideration for best coverage. It is advised to install with the face of motion sensor perpendicular to the most probable moving detection of people for the highest effective detection.Before use, make sure the power switch of PIR motion sensors is at the ON position.



1, Frequency: 433Mhz

2, Built-in antenna

3, Detection distance: 10-12 meters

4, Detection range: 110 degree

5, Operating power: 9V

6, Battery Life:about 6 month.



Remote Controller

s-l1600 (5)

Super quality widend keys to avoid misuse

Professional optimize circuit design

Apparently improved signal intensity

Coding IC 1527

Operating frequency:433MHz

Laboratory button tested 100000 times

Power : 3V BUTTON battery x 2 pcs
Static Current: I1 = 0
Transmission Current: I2 ≤ 15mA
Transmission Time: >1s
Transmission Distance : 80m (No Obstacle)
Operational temperature-10 degree to 40 degree (approx 14°F ~ 104°F)
Humidity: ≤ 90%

Battery Life: About 6 year



Wireless Outdoor Flash Strobe Siren

s-l1600

1. Combine the siren with flash together (ringing and flashing)

2. Operating power: 110-240V
3. Can send out 110db (+3db or -3db)  audio  alarm and flash built-in LED when the  system alarms
4. Flash once per few seconds on  standby  status
5. Frequency: 433mhz
6.Suitable for indoor and outdoor use.
7,Built-in backup  battery
8,Built-in Antenna







IP Camera

s-l1600 (5)s-l1600 (7)

2





Installation Guide

14effe953-c0a5-46b2-b626-18338173eee5










Packages


• G19 Alarm panel*1   (433MHz,without sim card and original box.English and Russian Voice to choose, and we will ship English voice and Black if you do not give us the specific requirement.)

• Wireless Door/Windows Sensor*6 ( with batteries)

• PIR Motion Infrared Detector*( with batteries)

• Wireless Remote Controller*( with batteries)

• IP Camera*1

• Wireless Waterproof Flash Siren*1

• RFID Cards*2

• AC Adapter*(UK/EU/US/AU,We will ship the correct power adapter to you based on your country)

• English User Manuel*1 ( we have Russian Manual in electronic version. If you need, please leave us your email)



2P6D2R2RF-1IPC05-1J008





If you need to know more about the information of this alarm system, please feel free to contact us and we will email you the Manual .

Thanks for your attention and have a nice shopping time!
