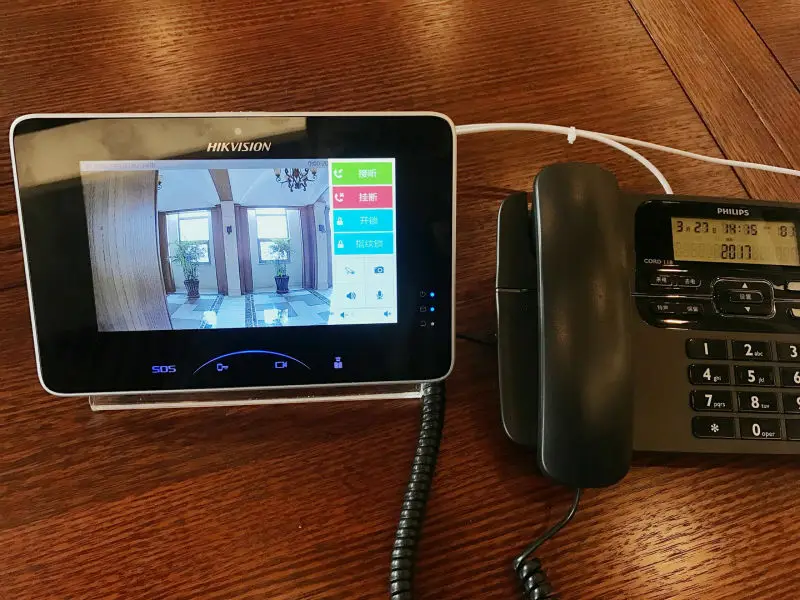

Hikvision DS-KH8301-A(DS-KH8301-WT)Indoor Video Touchscreen 7inch Monitor 1024X600 0.3MP camera,TF Card slot,wired intercom

96 % of buyers enjoyed this product!
Availability: out of stock
Price:
Sale Price:  R0
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days
Mobile APP:Hik-connect (The WIFI of the indoor monitor must be activated)
Support multi language;
When someone pushes the button of outdoor station,you can receive information on your mobile phone,you can use the phone to unlock door/Electric door closer,and answer/hang up the video;
The outdoor station can access to HIKVISION NVR,and it can live view,record,playback.

You can swipe card on the outdoor station to unlock,can also swipe card to HIKVISION 485 card reader.

If you use 2/4-button outdoor station, indoor monitors support video dialogue among each room number,For example 101 call 201,101 call 301,201 call 301,and if indoor monitor has a camera,Each room can see each other’s video images.;
If you use one-button outdoor station,and you have more than one indoor monitor,Master indoor monitor and Slave indoor monitor can’t support video dialogue between them,becuse there is only one room number.

The indoor monitor can take a sub video stream from HIKVISION camera,without time limit!(The base version does not have this feature.)
DS-KH8301-WT/DS-KH8501-WT can insert TF memory card, support video recode and playback video;

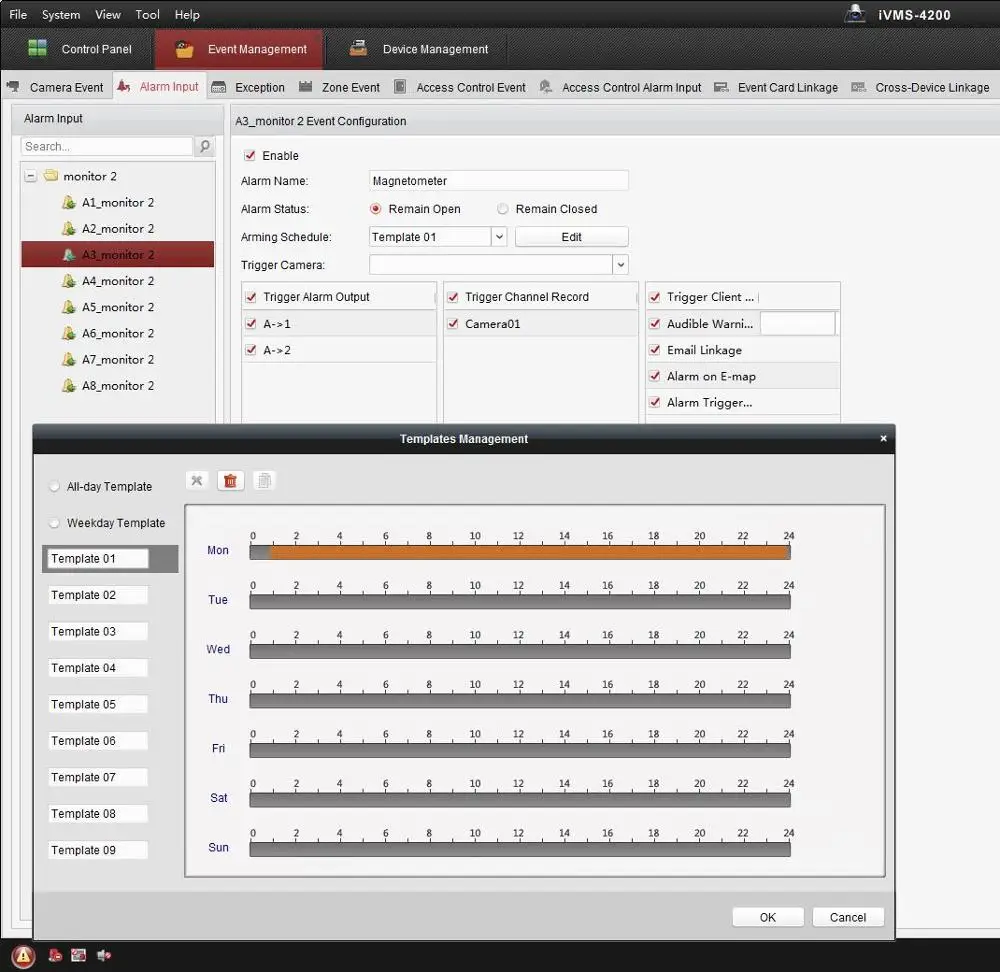

The indoor monitor has the function of Alarm input and Alarm output,and it can connect to Infrared alarm detectors, smoke detectors, gas detectors, magnetometer sensor,and it can connect to Acousto-optic alarm;
When the indoor monitor alarms,it can push information to your phone.
The indoor monitor can control opening Electric Lock and Hikvision fingerprint/smart lock;


IMG_3109IMG_3021QQ20170323112610QQ20170323100822QQ20170323100001IMG_2054IMG_2055IMG_2056IMG_2057IMG_2058IMG_2088IMG_0367IMG_0369IMG_0372IMG_0709IMG_071011111111111111111111111111111111111111111111111111111IPIP
IMG_1888_meitu_6IMG_1887_meitu_5IMG_1885_meitu_3IMG_1886_meitu_4

8301-no58301-alarm18301no412
IMG_1872IMG_1871IMG_1870IMG_1886IMG_1885IMG_1884IMG_1883IMG_1882DS-KH8301-A Integrated with 0.3 MP camera, many sets of indoor machine can video calls


Support  and
When using multiple keys at the door of machine, also can communicate between indoor machine;
Hikvision can be connected to the same local area network cameras and video surveillance video images;
The door machine from indoor machine can be used alone, but only a credit card to open the door, when simple entrance guard controller is used, as well as access to the LAN hik in video recorder;
Indoor machine can be used alone out of the door machine, may receive alarm detector (gas detectors, smoke detectors, infrared detectors, emergency button, gate magnetism, etc.), when the alarm host, you can also preview LAN hik in the camera images.


Product synopsis:
DS-KH8301-A for 7 inch touch all indoor machine, toughened glass panels, silver frame, after the dermatoglyph shell, highlight the noble qualities. A variety of color, black and silver (black gold, platinum, silver optional). Interface flattening, information visualization with capacitive touch screen and touch key, make information within reach.

Features:
support visible interphone
support family video calls
support video monitoring
take message function
automatic reply and don’t disturb function
privacy protection
hardware noise suppression and echo cancellation, ensure the quality of voice clear and bright
hall function
alarm function (8 access road protection zones, SOS emergency)
community bulletin
Wifi access wireless network
engineering installation convenience (hangs Taiwan stents, flash configuration, SD card upgrade, cable power supply)
System parameters
High-performance embedded processor SOC processors
Operating system, embedded Linux operating system
Video parameters
30 w pixel cameras, CMOS, can switch
Video compression standard h. 264
1024 * 600 resolution
PAL: video frame rate of 25 frames per second, NTSC: 30 frames per second
Display parameters
7 inch TFT color LCD screen
1024 * 600 resolution
Operating mode capacitive touch screen, touch the keys
Interface flattening UI interface style, gorgeous atmosphere, easy to operate
Audio parameters
Built-in audio input all point to the microphone
Audio output built-in speakers
The audio compression standard g. 711 u
Audio compression bit rate of 64 KBPS
Sound quality support for noise suppression and echo cancellation
Network parameters
10 m / 100 m Ethernet adaptive
The network protocol TCP/IP, SNMP, SIP, RTSP
Wireless WiFi 802.11 b/g/n
Alarm parameters
Alarm input 8-way protection zones
Device interface
So a RJ45 10 m / 100 m adaptive Ethernet front-end ports
RS485 2, RS485 half-duplex
IO output 2
32 gb SD card TF card, the biggest support
The work environment
Working temperature 10 – + 55(degree centigrade)
Working humidity 10% to 90%
The power consumption of 10 or less w
The power cable or DC12V power supply
The other parameters
Overall dimensions 217 mm * 142 mm * 26 mm
DS-KH8301-A
DS-KH8301-ADS-KH8301-A1DS-KH8501
