PTZ Bracket Electrical Rotating Bracket Pan Tilt Installation/ Stand/ Holder CCTV Accessories For CCTV Camera

100 % of buyers enjoyed this product!
Availability: out of stock
Price:
Sale Price:  R0
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days



coupon

DP 3.5BM 3
zp wifiml EC9 fhq







PTZ bracket Electrical Rotating Bracket Pan Tilt installation/ stand/ holder cctv accessories for cctv camera


11
22
44
55
66
Main features:

Completely independent intellectual property.

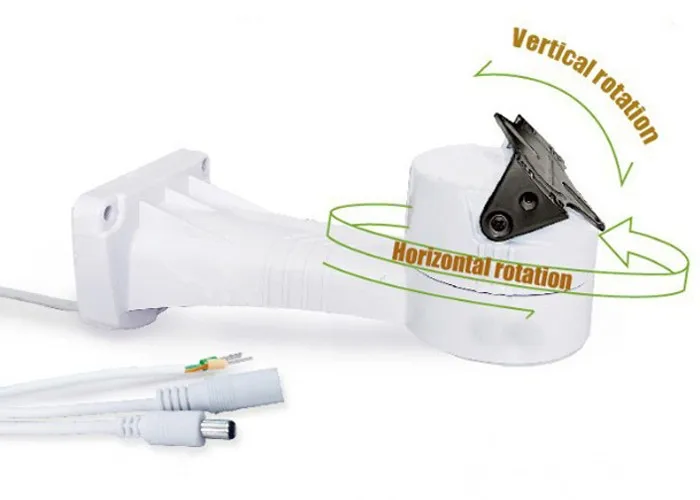

255° Horizontal rotate. Left and Right stop positions can be freely adjustable.
60° Vertical tilt. Up and down moving, 9 degree per second.
Built-in Intelligent decoder, intelligent preset position, intelligent scan function.
Can set 1 home position.
Rotating speed is adjustable, 6°/ 12°/ 20° per second.

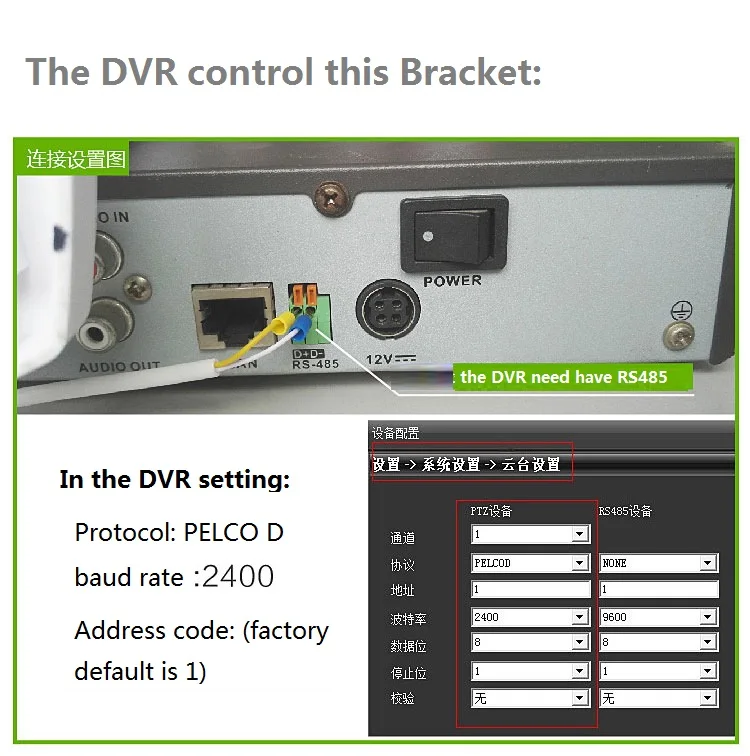

DC 12V Input power, R-S485 control cable.
Can be easily connected to HD camera’s R-S485 and DC 12V output.
Easy to make fixed HD camera to be with rotate function, but no need extra wiring.
Especially customized high quality and durable motor. Work stable and have long work life.
Easy to install, compatible with all kind HD camera and analog camera.
Waterproof design, dust-proof and high temperature resistance, industrial level plastic material.


Applicative advantage:

Can match with HD camera perfectly.
Can connect to IP module R-S485 directly.
Can be remotely controlled by NVR, platform software and smart phone, but no need extra wiring.
Competitive price. You can make the fixed lens camera rotate with lower cost.
Can reduce the quantity of fixed lens camera with this rotating bracket, then you can save much cost of the project. Let you have more competitive than other seller.
Especially suitable for indoor fixed camera to view wider angle.


Example:

When we installing a camera in the room, and want to view wider range, we usually use 3.6mm lens which with big visible angle but short visible distance, this make he camera\’s resolution can not be perfect But if this camera is equipped with our rotating bracket, 6mm lens can improve the resolution, at the meanwhile, you can view wider angle and longer distance, although 6mm lens can not reach 90 degrees like 3.6mm lens, but the rotating bracket allows the fixed lens camera to achieve the maximum monitoring range to 255 degrees. As a result, monitoring range and resolution have been improved, customer evaluations will be better.

Bracket data sheet:


Item

Data

Horizontal rotate angle

255°

Vertical rotate angle

60°

Rotate speed

6°/ 12°/ 20° optional

Limited position

Left & right limited position, Free adjustable

Limited position auto scan

3 level adjustable

Preset position

8 preset position

Preset position route

1 tour route, 3 level of rotate speed

fixed monitoring position

Yes

Manual homing feature

yes

Control wire

RS485

Interface

Power interface + RS485

Power input

DC 12V±5% / 100mA

Power consumption

0.9W

Work environment

-25-55, Humidity less than 95% (no condensation)



1 2
