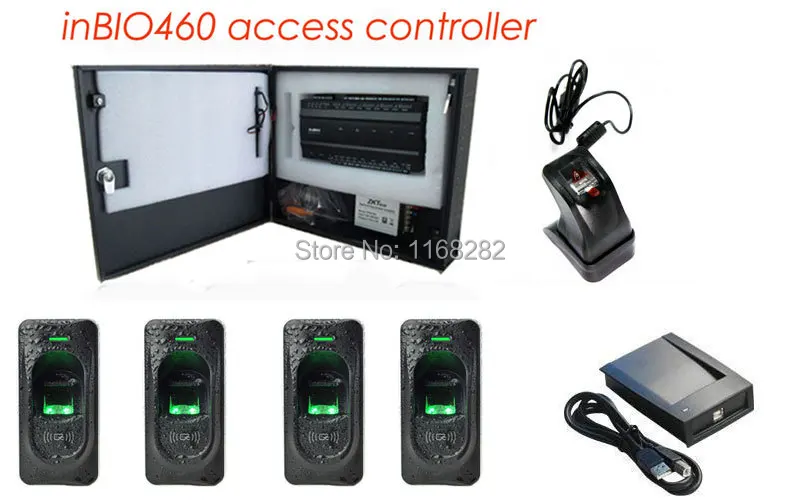

Wholesale inBio460 fingerprint access control panel+4 pcs FR1200 fingerprint reader and 1 pc ZK4500 +RFID Card reader

0 % of buyers enjoyed this product!
Availability: out of stock
Price:
Sale Price:  R0
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days
Contents:
Introduction:

 INBIO460 a new concept access controller based on biometric identification aims to improve the security of users’ life and information, it means that visitors need to place fingerprints on reader and the data collected is transferred to controller to verify. inBIO460 is specially designed for applications like home, offices and enterprises, users may choose from serial communication or Ethernet to get linked to software for central management, meanwhile, the distance between controller and RS485 readers could be more than 800m. inBIO460 is very convenient and safe for users to connect other security products for its groove socket, even quietly brilliant to see its working status through LED indicators on surface. Web-based management helps know about the local events on e-map and video remotely in real time control. We believe it will bring a big revolution of access control market in the world.




 Features:



– Truly biometric identification inside of access controller
 Users place fingerprints on reader, and access controller verifies the biometric data transferred from RS485 reader directly.
– Supports external SD Card for database back-up
inBIO460 is standard with SD Card slot, it enhances events capacity and protects database missing.
 – 800m distance between RS485 reader and controller at least
 It is steadily compatible working with RS485 fingerprint reader, and enhances the communication distance to 800m at least.
– Quietly brilliant to know about controller’s working state by LED indicators
 There are five LED indicators on the housing of inBIO460; they indicate whether power is on , whether controller runs steadily, whether the identification is valid, and whether data is transferred from RS485 readers normally.
 – Easy to remotely control and know the status of any door
 Users may remotely close or open the door anywhere on software and know the status on e-map
 -Video surveillance linkage
 Pre-setting video surveillance linkage function on software, illegally operating on reader would active the camera to take photo or record video immediately.
 – Multiple hardware protection measure
 There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
 – Integration with Other Security Systems
 InBIO460 can be integrated with other security systems such as CCTV, fire alarm, BAS (building automation system) and other systems to configure total security system.
-Supports different wiegand reader
 The controller supports different wiegand format, and can connect to different reader, including ID card reader, IC card reader and HID card reader
-Input/Output Ports to Control Doors
 Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
-Variety of Communication Function
 Using either serial or TCP/IP communication, it provides reliable network system
 -B/S structure software
 It is easy to manage the system by browser from client PC. There is no need to install software on each client.
 -Normal open after first punch card can be setup
-Real-time Monitoring of Door status
 Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
-Simple Access Control System Configuration
-Interlock function
 Link different doors with special logic that one door is Open, others should be closed.
 -Multi-card operation
This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
 -Anti-Passback
 -Duress Mode
-SDK available
The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.



Specifications:



Model
inBIO460
CPU
32bit MIPS CPU
RAM
32M bits
Flash Memory
128M bits
Fingerprint Capacity
3000
Card Capacity
30,000
Event Buffer
100,000
SD card backup
Support
Power / Current
DC 9.6V-14.4V, Rated Max.1A
Wiegand Reader Port
4ea (26bit Wiegand, 8bit Burst for PIN)
RS485 Reader Port
1ea Extended RS485 Port
Communication
RS485, TCP/IP
Baud Rate
38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
Input Port
8ea (Exit Button#1,  Door Sensor#1; Exit Button#2,  Door Sensor#2; Exit Button#3,  Door Sensor#3; Exit Button#4,  Door Sensor#4)
Output Port
4ea (4 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC)
4ea (4 Aux FORM-C Relay Output, SPDT 2A@30VDC)
LED Indicator
Yes, LED indication for communication, power, status and punch card
Operating Temperature
0°to +55°C
Operating Humidity
10% to 80% relative humidity non-condensing
Dimension (H*W*D)mm
226*106*36(Single board)
400*330*90.5(with power supply and metal cabinet)
Housing Material
PVC
Software
Access5.0




Item show:



Specification

 1. Support proximity (EM-ID 125 KHz or 13.56Mhz Frequency) Card

2. 5- 10cm Proximity Reading Range

3. Standard USB to PC Communication Interface

4. Power on USB

5. -10 to 70 C Ambient Temperature

6. Less 100mA Working Current

7. Champagne or Black Color

8. DC 5V working Voltage or Power on USB9. 140*100 *30 mm

 About UseConnect USB data wire between Device and PC, after 30 seconds for testing the system, then punch the card, and execute the following steps in PC: Start—-Program—-Accessories—-Notepad. Card Number will show in Notepad automatically Lines (No need press “Enter” for it)  Wire ConnectionPlug USB wire into PC USB Port, the other port connect Reader Communication Port.Data Format: Digital Decimal Card Number Hex Card Number (Your customized Card Number Requirements is also available)
